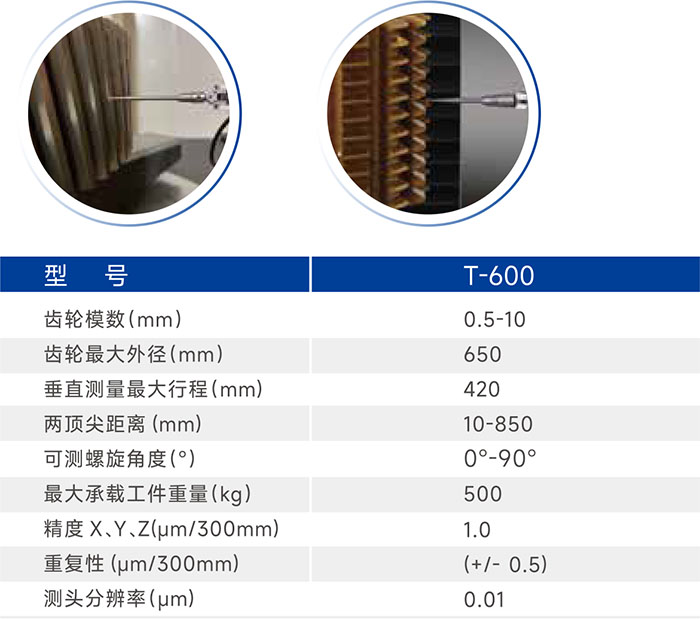

Measurement function

Cylindrical inner and outer gear software (including spur and helical gears)

Tooth profile: (Fa, ffa, fHa, Ca, fHam, V)

Spiral: (F β、 FF β、 FH β、 CH β m. V)

Tooth pitch: (Fp, fpt, fu, fpk, F., Rs)

Gear cutting tools: gear shaping cutter measurement, rolling cutter measurement, gear shaving cutter measurement

Measurement of worm gear and worm gear (with eccentricity correction function and worm gear without top hole)

Unknown parameter (cylindrical) gear mapping

Synchronizer gear measurement

Measurement of splines and straight edged splines

Extended functions: full tooth measurement, distortion inspection (three section inspection), three-dimensional topology analysis of tooth surface, comparison measurement before and after heating, measurement of gear top circle diameter and root circle diameter, measurement of shaft gear angle position, measurement of gear keyway to tooth body or groove angle position, measurement of gear installation error compensation, measurement of missing or parallel tooth gear workpieces, measurement of gear lead, etc

Other measurements: cylinder indexing measurement software, lead measurement, conicity measurement, and isometric measurement

Evaluation criteria: (including user-defined, Chinese National Standard 2008 and 88, International Standard 2013, German Standard 3962, American Standard 2000 A88, Japanese Standard)

Gear Analysis Package (Including General, China GB10095-2008 and GB10095-88)

IS01328-2013, DIN3962, AGMA2000_ A88, JIS B 1702-1998 and JIS B 1702-1976)
